Tuff Lift 2200 Pound Electric Forklift With Side Shift 118″ Lift CPD10
Product Description
Features & Specifications:
- Model: CPD-10
- load weight: 2200 lbs
- Load center distance: 19″
- Driving style: Seated
- Fork total length: 142″
- Total Length: 46″
- Mast Lowered height: 83″
- Roof guard height: 85″
- Mast extended height: 151″
- Distance from seat surface to overhead guard: 40″
- wheelbase: 62″
- front overhang: 16″
- rear overhang: 14″
- Front track: 39″
- Rear track: 37″
- Minimum ground clearance: 4″
- Lifting height: 118″
- Fork adjustment ranges: 39″
- Minimum turning radius (outside）: 89″
- Minimum right angle channel width: 156″
- Gantry inclination (front/rear) α/β（°）: 6°/12°
- Maximum lifting speed without load(in/s): 13″
- Full load maximum lifting speed (in/s): 11″
- No-load maximum operating speed: 8mph
- Full load maximum operating speed: 7mph
- Full load maximum grade: ≤12
- Gross machine Weight under standard no-load state: 5,908lbs
- Number of wheels × = driving wheels (front/rear): 2×2
- Tire type (front/rear): Solid tires
- Tire size (Front): 6.50-10
- Tire size (rear): 5.00-8
- Brakes/Service Brakes: Hydraulic-pedal
- parking brake: Mechanical – Manual
- Battery voltage/capacity V/AH: 60V150ah
- Drive motor power: 5.5kw
- Oil pump motor power: 5.5kw
- Motor type: AC
- Lifting Height: 118″
- Mast Lowered height: 83″
- Mast Extended height: 151″
- AC power system
- 3 Way valves

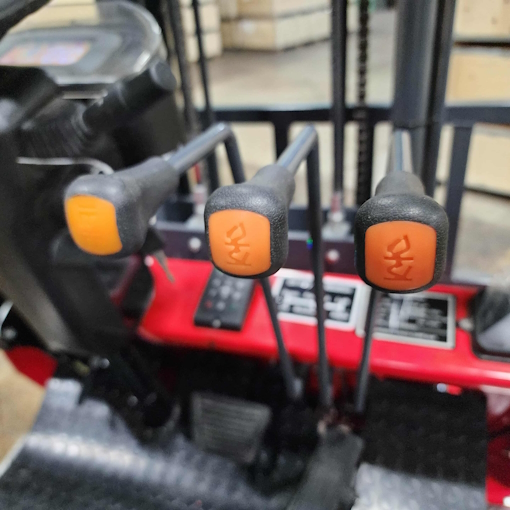

- Seat mounted hydraulic mini levers
- Wide visible mast
- Wide brake pedal
- With solid tires
- Full hydraulic power steering
- Long forks/Long fork bar/Load backrest

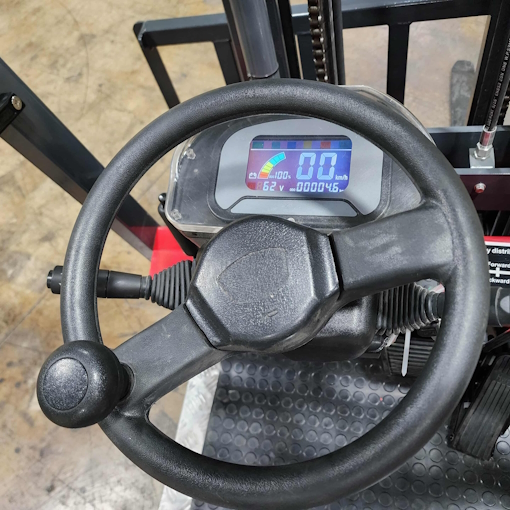

- Digital Multifunction Display with power indicator
- Emergency stop button in armrest
- 110V charger
- Approximately 6 hours to charge up once it’s dead
- 48V Battery Pack
- (8) 6 volt batteries
- 90 Day Warranty on Batteries
- 1 Year Warranty
